Home > Products > Clean Booth








A Clean Booth is a movable structure with a HEPA Filter on its top and vinyl curtain covered around. Its design is simple but it is a vertical laminar clean room, providing a high level of cleanliness up to Class 100. The air passes through the HEPA Filter, comes inside the booth and goes out through the bottom. In that case, a small amount of positive pressure is maintained inside, preventing any external air from coming in, so it can keep a high cleanliness level.

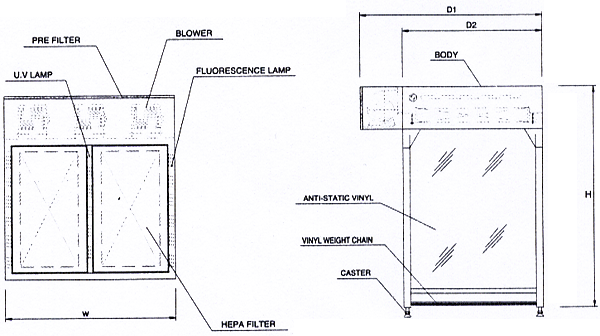

Specification
SG-CB-1
SG-CB-2
SG-CB-3
SG-CB-4
Dimension
Width(W)mm
1290
1290
1910
1910
Depth1(D1)
1890
2510
1500
3110
Depth2(D2)
1290
1910
1900
2510
Height(H)
260
2600
2600
2600
Filter
Pre Filter
Non woven synthetic fiber
HEPA Filter
HEPA Filter : 0.3§­ DOP 99.97%
HEPA Filter
Dimension
610x610x150
610x610x150
610x915x150
610x1219x150
Qty.
4
6
6
6
Power
1¨ª x 110V/220V x60Hz
Clenaliness Level
Class 100~10,000
Weight
35§©/min
50§©/min
70§©/min
90§©/min
Noise
65dB(A)
Illumination
500 Lux Over

* In addition to the specification above, various types are available according to order.
